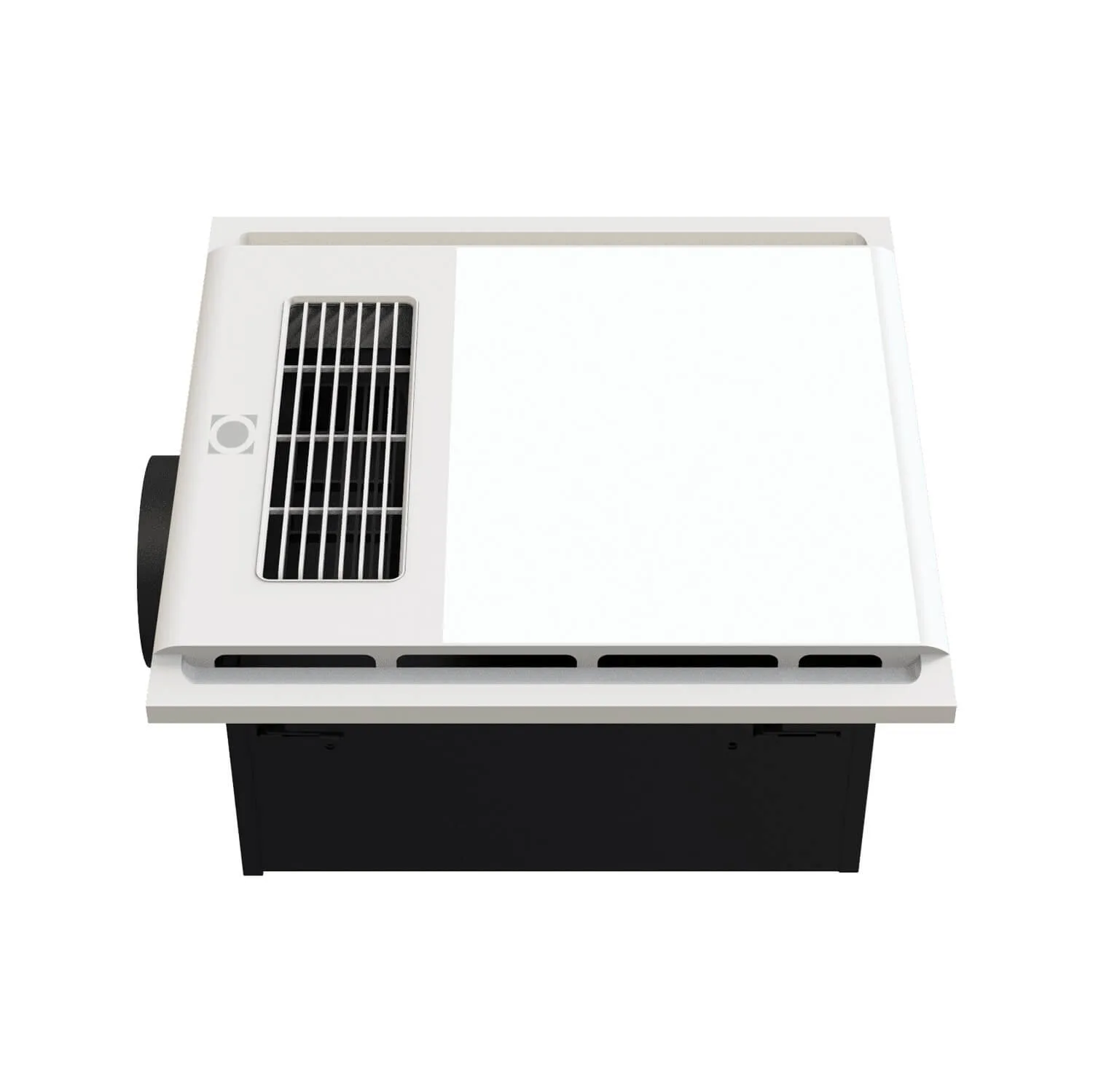

Domus HEATCORE 4-In-1 Retrofit Bathroom Heater White

SKU: 56024

$169.00

In stock

Shipping calculated at checkout by your postcode. Free shipping thresholds apply in many zones.

Details & specifications

Domus HEATCORE 4-In-1 Retrofit Bathroom Heater White

The HEATCORE 4-In-1 Retrofit Line Bathroom Heater offers a modern flush-like appearance, designed to replace previously installed 3-In-1 Infrared models. Suitable for most contemporary bathroom designs, combined with the latest technology in PTC bathroom heater models. The 4-In-1 Functions include – Heater, Exhaust Fan, Circulating Fan, and Light Unit. Patented Heat Breeze Technology heats the room while offering low level condensation extraction in the bathroom. This Retrofit Line model features a single AC Motor, producing a 2150W output of powerful heat breeze and high-volume extraction at 300m3/h. A circulating fan to reduce warm temperature build up is included, and a 12W LED Tri-Colour switchable light. Complete with Digital Wall Controller, allowing easy switching from all modes. An ALL-OFF button for exiting is also included. Ideal for retrofit installations, no extra switch wires required, simply utilising two of the 5-core wiring that is existing from previous installation. Domus PTC Bathroom Heaters feature an advanced safety feature where the unit will automatically shut off after two hours in case it is left on accidentally. If the unit runs for two hours continuously, a safety function will automatically turn it off. This setting can be overridden and reset by pressing any switch on the controller within this two-hour period. Ideal for new and existing installations with a larger 390x390mm fascia frame, and a variable cutout size from 330x330mm to 350x350mm. This will cover most existing 2 and 4 Heat Infrared models. Accessories include Digital Controller Wall Controller, 3M Flexible Duct, and Exterior Grille. All Domus PTC Bathroom Heaters are backed by our 5 Year In-Home Warranty.

Key Features

4-In-1 functions: Heater, Exhaust Fan, Circulating Fan, and Light
2150W PTC heating element – self-regulates to prevent overheating
Air extraction: 300m³/h
12W LED tri-colour light – 3000K / 4000K / 5000K switchable
Patented Heat Breeze Technology
Retrofit-friendly – fits most existing 330×350mm cut-outs
Uses existing 5-core wiring, no extra switch wires needed
Single AC motor
6-switch digital wall controller with ALL-OFF button
Automatic 2-hour safety shut-off
Compact 390×390mm fascia
Available in White and Black
Includes: 6-switch digital wall controller, 3m flexible duct, exterior grille
5-year in-home warranty

Dimensions & Installation

Fascia Size	390 × 390 mm
Cut-Out Size	330 × 350 mm

Specifications

Input Voltage	240V AC
Total Power	2250W
Heat Output	2150W
Heating Type	PTC Heating Element
Motor	Single AC Motor
Motor Wattage	60W AC
Air Extraction	300m³/h
Duct Size	100mm
Light Wattage	12W LED
CCT	3000K / 4000K / 5000K (switchable)
CRI	≥80
Noise Level	≤46dB
IP Rating	IPX2
Fascia Size	390×390mm
Cut-Out Size	330×350mm (variable)
Ceiling Clearance	200mm minimum
Inclusions	6-Switch Digital Wall Controller, 3M Flexible Duct, Exterior Grille
Finish	White

Lighting

CCT	3000K / 4000K / 5000K (tri-colour switchable)
Lumens	3000K: 1000lm \| 4000K: 1150lm \| 5000K: 1100lm
CRI	≥80

Warranty

5 Year In-Home Warranty
Note	unless specified as a DIY item, all hard‑wired products (light, ceiling fans, bathroom heaters etc) must be installed by a licensed electrician. Warranty claims require a Certificate of Compliance or equivalent documentation showing the electrician’s licence number & installation date.
In short, keep your electrician's installation invoice and/or compliance certificate!
