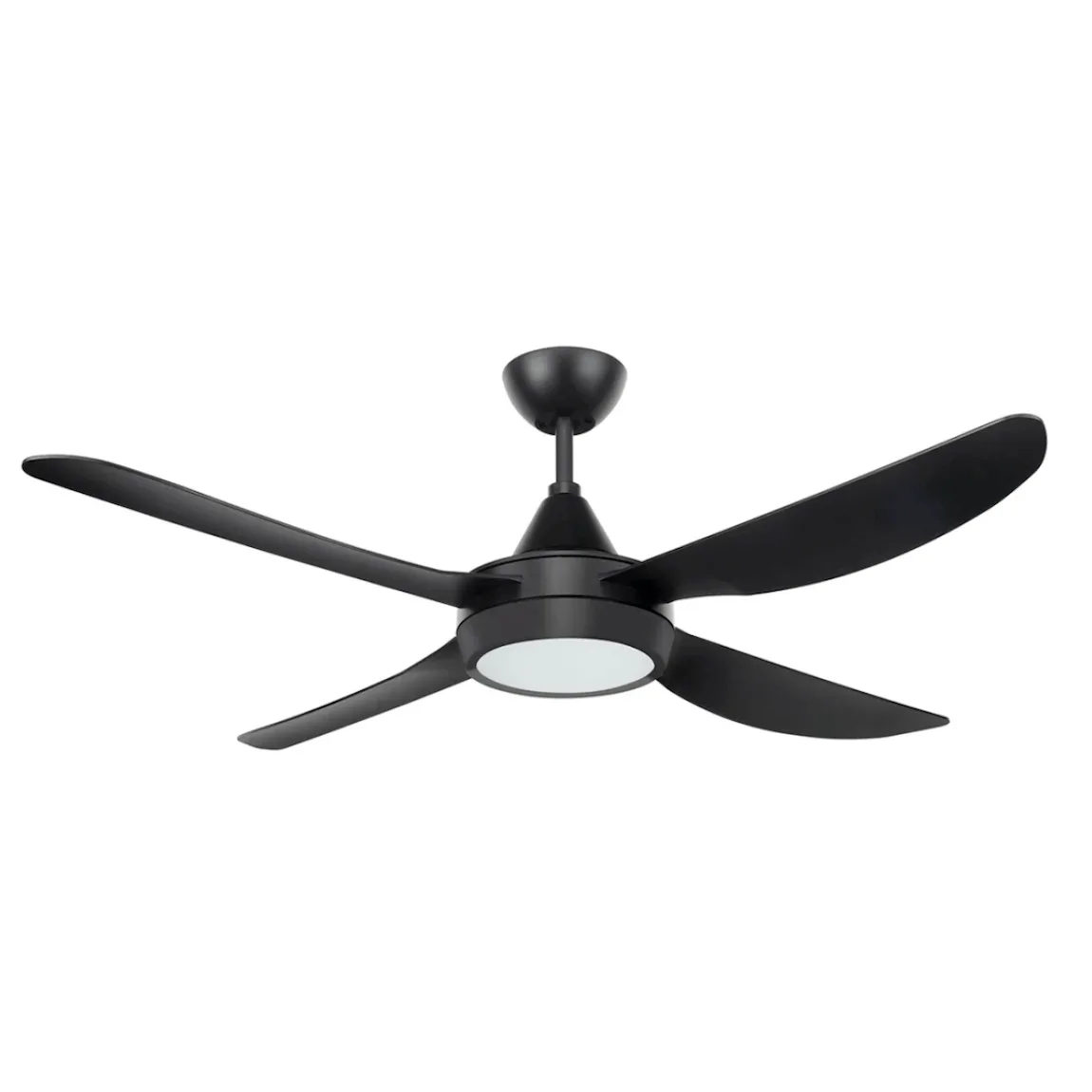

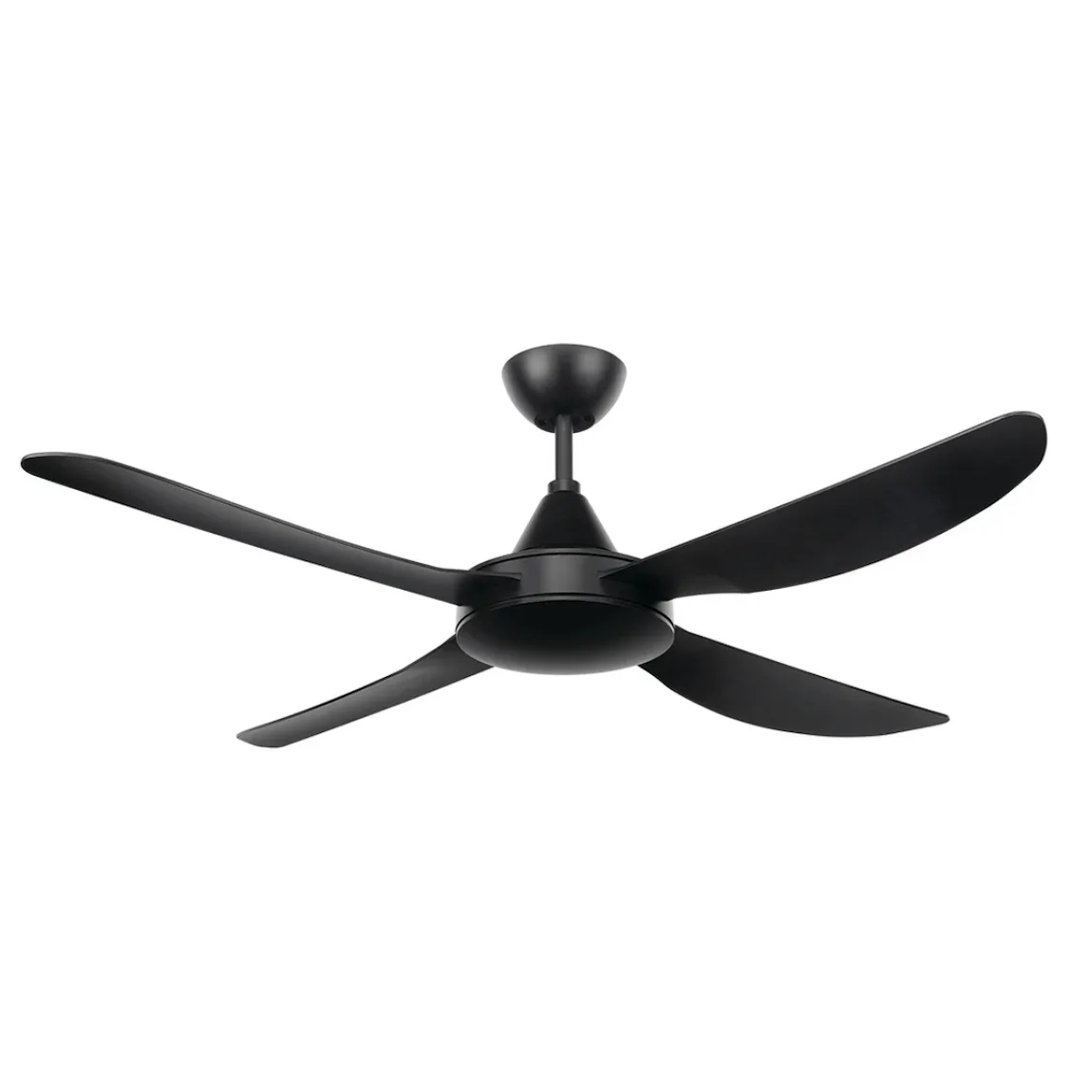

Brilliant Vector AC Ceiling Fan in 48" 52" 56"

Brilliant Vector II 48 inch / 52 inch / 56 inch ABS Ceiling Fan Range with Ezi-Fit push to click in ABS blades!

The Brilliant Vector II 48 inch / 52 inch / 56 inch ABS plastic ceiling fan can be installed in any indoor locations or under cover outdoor areas, even coastal areas. The Ezy-Fit blade system reduces fan assembly and installation time.

Brilliant’s Vector II Fans have been the electrician's favorite for some time, thanks to 'Ezi-Fit' blade technology that allows incredibly fast blade assembly in under 20 seconds. Unlike traditional fans, no tools or screws are required for blade assembly. Simply push the Ezi-Fit blades into the slots and they lock in. Now that’s Brilliant!

This is not just a super quiet and efficient operator - it has excellent airflow, producing up to 13,650 cubic metres of air per hour on high speed (56").

The Vector II range is available with or without light; New for 2024, the Vector II light models now have a Tri-Colour CCT LED Light which produces over 1400 lumens in your choice of Warm White (3000K), Neutral White (4200K) and Cool Daylight (6000K). The light is also step-dimmable.

Fan also has reversible motion for summer/winter, via button on top of motor:
In hot weather: Downward air flow creates a wind chill effect for greater energy savings.
In cold weather: Upward air flow recirculates rising warm air for greater energy savings.

The Vector II range comes with a 6 year Australia-wide warranty, including 3 years 'in-home' (parts and labour) warranty.

Wall Controllers & Remotes

As standard, all Vector II fans come with a 3 speed wall controller with light switch in the box. No add ons necessary.

Optional Remote: The Vector AC ceiling fan has an optional remote controller with all the necessary functions to operate the fan and light (applicable to light models), which includes the remote hand piece, a quick-connect receiver for the fan, batteries and a wall cradle. (MPN: 99999)

Fan Specifications

Size: 48" (1220mm), 52” (1320mm) or 56" (1420mm)
Motor: 50W AC Motor
Construction: Durable ABS Plastic Body and Canopy
Blades: 4 x Ezi-Fit ABS Plastic Blades for quick installation
Blade Pitch: 14 degree
Airflow performance in cubic metres per hour (48" / 52" / 56"): 11,500 / 12,500 / 13,650
Ceiling Rake: 15 degree max (hangsure canopy)
Light Models: 18W CCT Tri colour LED Light
LED Light Colour: 3000K / 4200K / 6000K
LED Light Lumens: 1400 lm
Dimmable: Yes
Control: Wall (3-speed) control in every box (add optional basic remote or Smart WiFi remote)
Warranty: 6 year warranty, including 3 years 'in-home' (parts and labour) warranty

Available Variants

- Pure White, 48 inch, No Light (MPN: 21546/05)
- Pure White, 48 inch, with Tri Colour CCT 18w LED Light (MPN: 22291/05)
- Pure White, 52 inch, No Light (MPN: 21548/05)
- Matt Black, 52 inch, No Light (MPN: 21548/06)
- Pure White, 52 inch, with Tri Colour CCT 18w LED Light (MPN: 22293/05)
- Matt Black, 52 inch, with Tri Colour CCT 18w LED Light (MPN: 22296/06)
- Pure White, 56 inch, No Light (MPN: 22563/05)
- Matt Black, 56 inch, No Light (MPN: 22563/06)
- Pure White, 56 inch, with Tri Colour CCT 18w LED Light (MPN: 22565/05)
- Matt Black, 56 inch, with Tri Colour CCT 18w LED Light (MPN: 22565/06)
