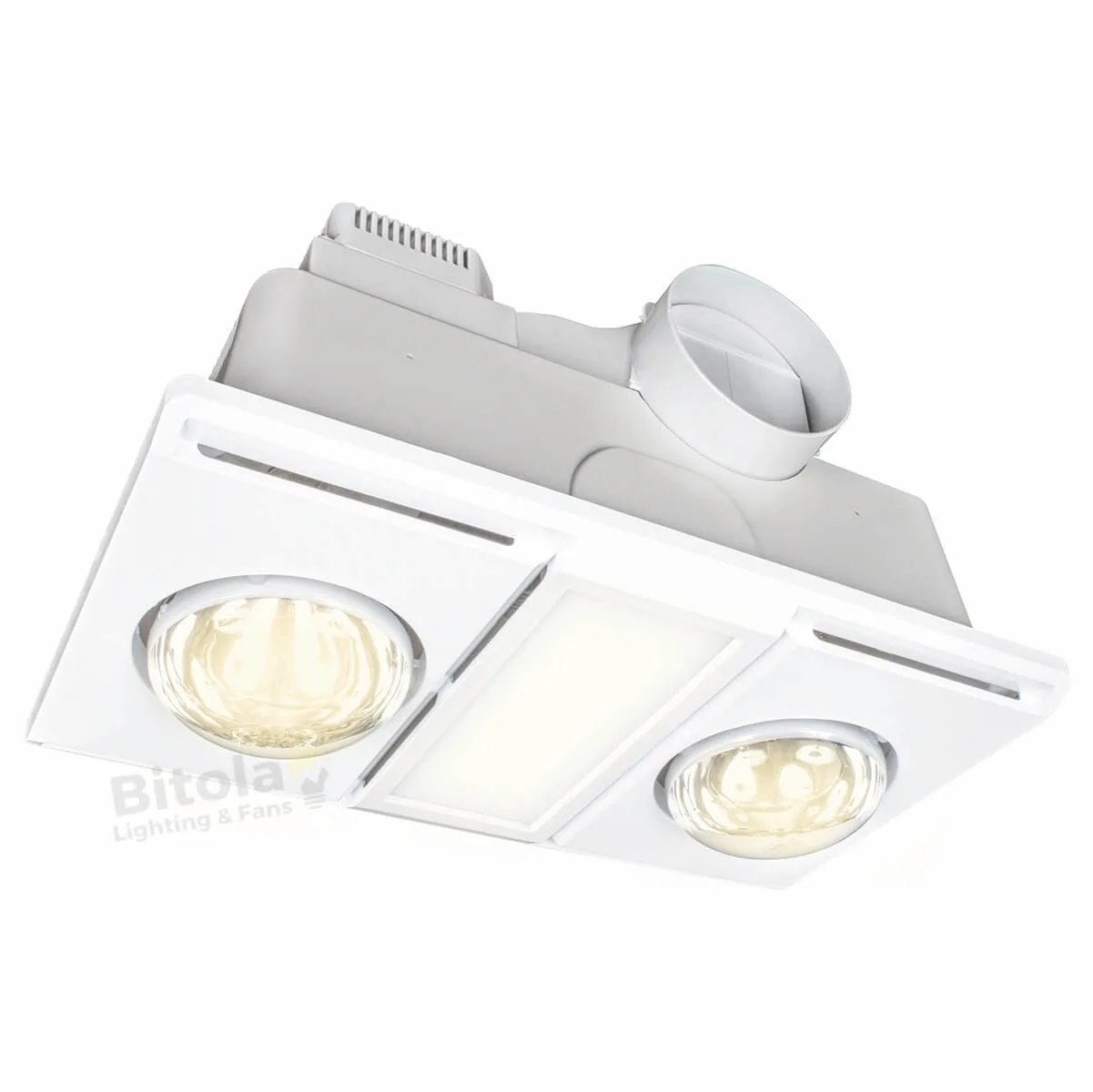

Brilliant Supernova-II 2 Heat Bathroom 3-in-1 Exhaust Fan with CCT LED Light

Brilliant Supernova-II 2 Heat Bathroom 3-in-1 Exhaust Fan with CCT LED Light.

Stylish 3-in-1 Bathroom HEATER/CCT LED LIGHT/FAN 3-in-1 combo. Powerful and efficient 40w exhaust fan extracts up to 500 cubic metres of air per hour, making these perfect for all bathroom sizes, small or large.

The Brilliant Supernova-II 2 Heat includes 2x 275w durable IR heat lamps for instant heating and a powerful 900 lumen 12w LED CCT built in panel light as the central light source. The 12w LED light panel is CCT colour temperature adjustable, so users can select between Warm White (3000K) and Daylight (5000K) light output colour depending on preference

Package also includes wall switch, 3m flexible aluminium ducting and exterior grille and clamps.

This unit is fitted with a thermostat switch that will automatically turn on the fan if the internal temperature exceeds 80°C.

Comes with a 3 year warranty.

White fascia.

Specifications:
- 3 year warranty
- 250 x 430mm cut out (template included in box)
- 2 x 275w durable IR lamps for instant heating included
- Super-bright 12w LED CCT panel built in centre light source
- Light is CCT adjustable: Warm White (3000K) / Daylight (5000K)
- Light lumens: 800lm / 900lm
- Other light specs: 100° beam angle, 82+ CRI
- High airflow extraction up to 500m³/hr
- Ultra quiet and powerful 40W ball bearing motor
- Draft stopper and 3m Ø150mm flexible aluminium duct included (side ducted)
- 3m flexible aluminium ducting includes exterior grille and clamps
- Wall controller with 3 switches included for separate heat, light and fan control
- Thermal cut out feature at 80°C for safety
- Removable grille for easy cleaning
- Cut out template included

Dimensions:
Fascia- 300mm x 480mm
Cutout- 250mm x 430mm
Unit depth- 200mm
Side duct- Ø150mm

MPN: 20748/05

Important Installation & Warranty Information

Do not install bathroom heater/light/exhaust units directly above or close to a shower.
Installing these fittings in the incorrect position greatly increases the risk of moisture entering the LED light or internal components, which can cause failure. Units installed directly over, or too close to, the shower zone may void your warranty.

These products must be installed by a licensed electrician.
They are multi‑function appliances and incorrect installation may void the warranty.

No proof of licensed electrical installation = no warranty or replacement.
Failure to provide evidence of installation by a licensed electrician may void your warranty.
