Brilliant Smart WiFi Video Doorbell and Chime

Brilliant Smart WiFi Video Doorbell & Chime Series II

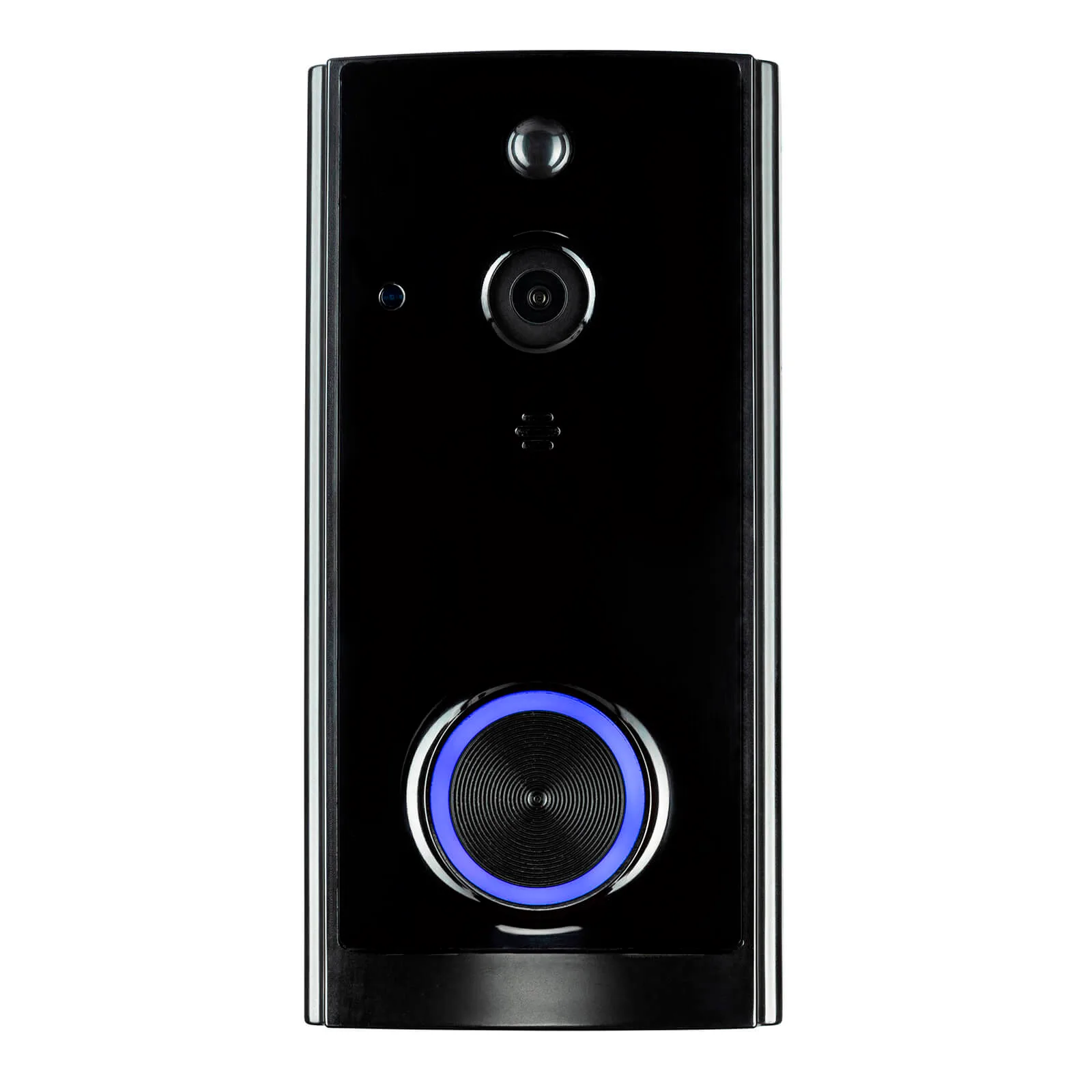

The Smart WiFi Video Doorbell is a classic security product from Brilliant. It allows you to answer your doorbell from anywhere, via your phone. Video, two-way audio and built-in motion sensors allows you to know whos at the front door and detect any movement on your property, triggering alerts to your phone 24/7. You can also use it to trigger other Brilliant Smart devices via your WiFi signal, even alarms. There's no hub required.

HD Resolution Gives Clear Video
The 2 megapixel camera means you'll get clear images and details, especially for identifying visitors or potential intruders. The camera provides a full HD high definition video resolution of 1080P (1980 x 1080 pixels), at 30 frames per second. With a wide viewing angle of 166 degree, you'll get excellent coverage in front of your camera.

Advanced PIR Motion Detection

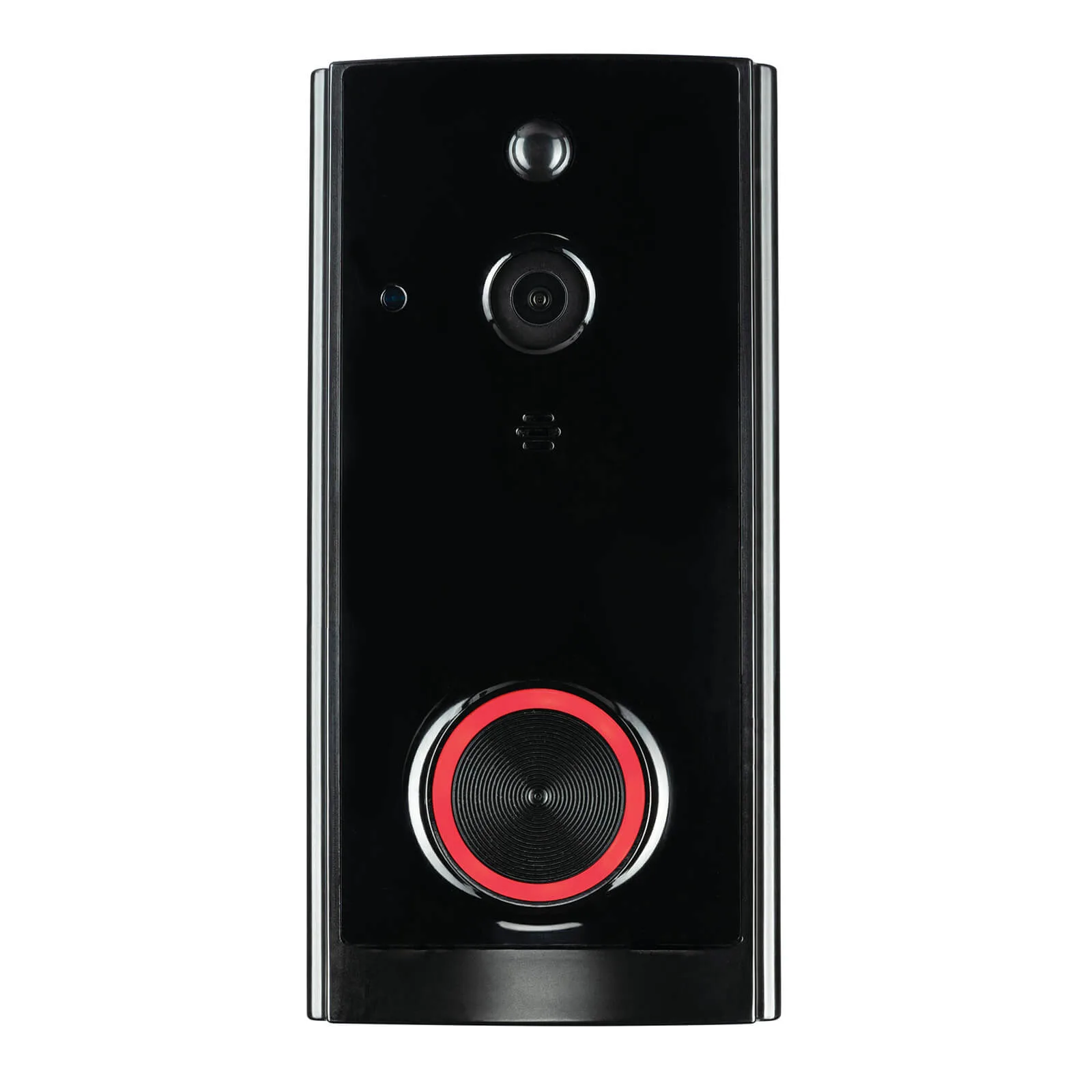

The doorbell's advanced PIR motion sensing can detect movement for up to 4m, so any activity within 4m of your door will trigger alerts. The LED indicator is blue when motion is detected, and turns red when the doorbell button is pressed.

Two-Way Audio
You can talk and listen to visitors through the built-in speaker and microphone, even remotely through your BrilliantSmart app.
This allows you to communicate with visitors in real-time, which can be useful for confirming deliveries, or deterring unwanted guests.

Infra-Red Night Vision For Around the Clock Security
The camera has built-in infra-red night vision to ensure clear video even in low-light conditions. The infra-red filter is automatically activated at night (day/night modes), and provides night vision distance up to 5m.

Wide 166 Degree Field of View
It's not quite 180 degrees, but the camera's wide 166 degrees field of view (FOV) means you'll see an excellent range of area in front of your doorbell. As an example, if you have a camera with cars parked perpendicularly quite close in front of the doorbell, you'll likely to still be able to see four cars.

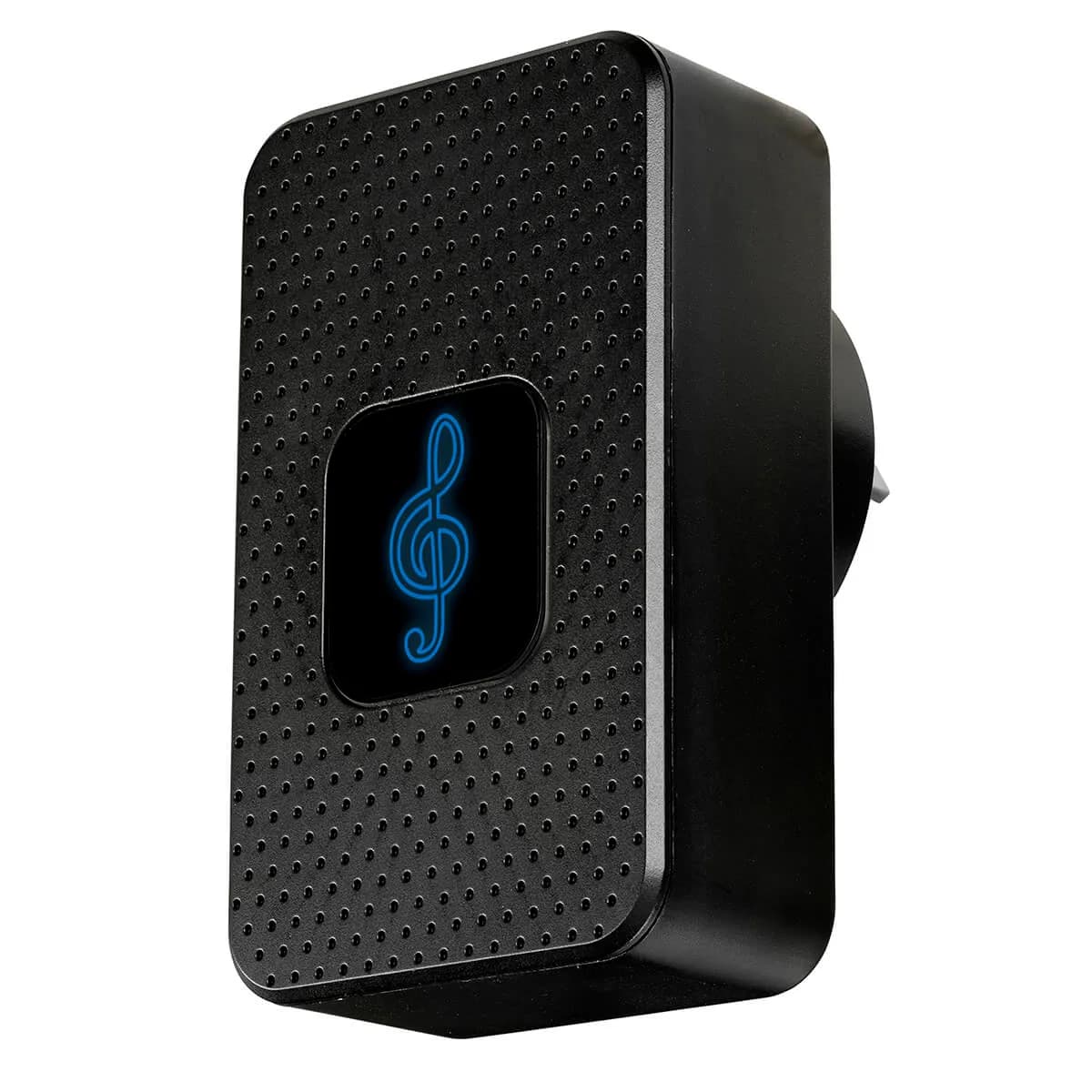

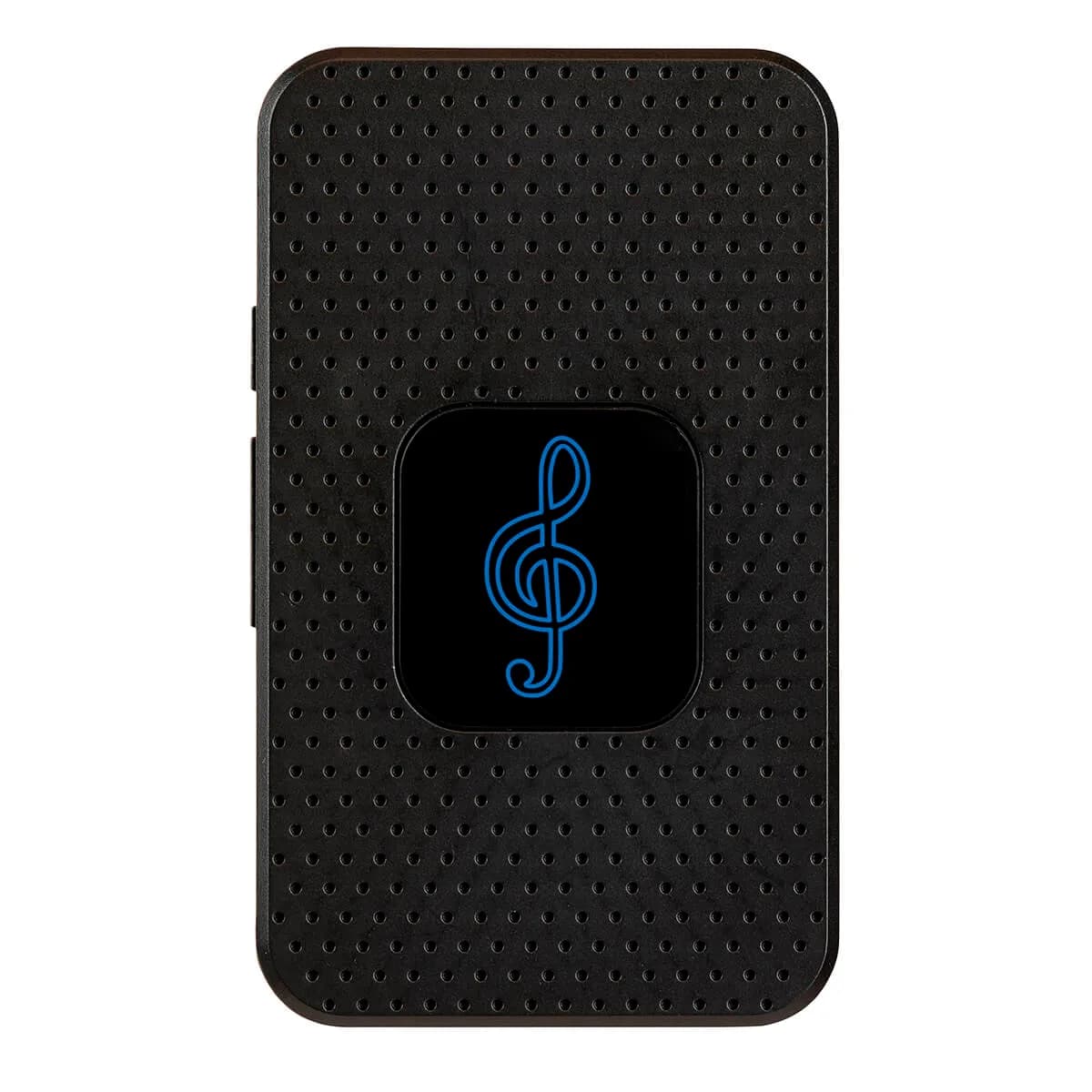

Chime Compatibility
Unit comes with a chime plugin with the following features.
- Multiple tones selection - 38 in total with 4 volume levels, this includes silent mode
- Volume range: 25-110db (Decibels)
- Plugs into any standard 240V power outlet.
- Works up to 24m (line of sight) away from the Smart WiFi Video Doorbell.

Efficient Power & Long-Life Batteries
The Doorbell uses low power, with its 2x rechargeable 3.7V 3400mAh lithium-ion batteries providing long service. You can easily recharge these as required via a DC5V micro USB cable (included in the box). There is also an option to hardwire connect to 14V–24VAC/DC (not included).

Smart Home Integration
Connects to other BrilliantSmart wifi and other compatible apps.

Storage & Privacy
You can record direct to your phone by either screen shot or video recording. There is also a built in memory card slot that supports up to 64GB SD card (not included). Recording is motion activated. Recorded SD card footage is encrypted and can only be viewed through the BrilliantSmart app, or remove card and view recorded files through your PC There is also an option to subscribe for cloud storage (eg. a basic plan for about $75/year in 2024).

Weather Resistant
The Doorbell has a durable construction and IP44 weather resistant rating, which makes it suitable for all indoor and undercover outdoor locations.

Installation
- Do It Yourself
- Can be hardwired to an existing suitable ELV transformer (not included)

Weight & Dimensions

Height: 73mm
Width: 43mm
Depth: 32mm
Weight: 285g

Technical Specifications - Chime:

Operating voltage: 240v / 50Hz
Class: II (2)
Radio Frequency Info: RF 433.92MHz
Volume: 4 levels (25db-110db)
Ringtones: 38 options with 4 volume levels, including silent mode (select alternate tones for different events)
Working distance: 20m (line of sight)
Construction: ABS / Polycarbonate
- Model 22163SP002/06

MPN

22163/06

Downloads

Smart WiFi Doorbell and Chime (22163)
22163 06 Smart doorbell & Chime_user manual SII_00_FA
